TestToolBox::XmlCheck Class Reference

Check an XML tree/subtree or compare two trees/subtrees. For more info about usage see Using XmlCheck. More...

#include <XmlCheck.h>

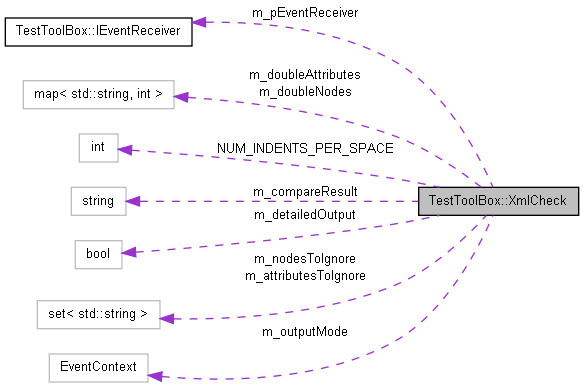

Collaboration diagram for TestToolBox::XmlCheck:

Protected Attributes
IEventReceiver *	m_pEventReceiver
	Interface for receiving all kinds of test events.
Private Member Functions
void	WriteNode (TiXmlNode in_pNode, unsigned int in_indent, int in_maxChildNodes=0, char const in_file=0, long in_lineNum=0, FormattedContents *in_pContents=0)
	Write given XML node to EventReceiver or given optional container.
void	WriteAttributes (TiXmlElement in_pElement, unsigned int in_indent, char const in_file=0, long in_lineNum=0, FormattedContents *in_pContents=0)
	Writes attributes of given XML node to EventReceiver.
std::string	IfDetailed (std::string const &in_str)
	Helper function to produce more detailed output.
Private Attributes
EventContext	m_outputMode
	Output mode for writing XML contents.
bool	m_detailedOutput
	Flag indicating whether the output contains more details.
std::set< std::string >	m_attributesToIgnore
	Set of attribute names to ignore when checking an XML tree.
std::set< std::string >	m_nodesToIgnore
	Set of node names to ignore when checking an XML tree.
std::map< std::string, int >	m_doubleAttributes
	Set of attribute names to be treated as doubles with specific precision.
std::map< std::string, int >	m_doubleNodes
	Set of node names to be treated as doubles with specific precision.
std::string	m_compareResult
	Result of last call to Compare().
Static Private Attributes
static const unsigned int	NUM_INDENTS_PER_SPACE = 2
	Indenting to be used when writing an XML tree to test output.
Configuration

IEventReceiver *	SetEventReceiver (IEventReceiver *in_pEventReceiver)
	Define to which destination test events (e.g. failures) are reported.
void	SetDefaults (void)
	Set default values for the following settings.
void	SetOutputModeForWritingXmlContents (EventContext in_outputMode)
	Set output mode for writing XML contents.
void	SetDetailedOutput (bool in_detailedOutput)
	Set amount of data written to test output.
void	IgnoreAttribute (std::string const &in_attribute, bool in_ignore=true)
	Define whether the given attribute shall be ignored when checking XML data.
bool	IsAttributeToIgnore (std::string const &in_attribute) const
	Return whether the given attribute shall be ignored when checking XML data.
void	IgnoreNode (std::string const &in_nodeName, bool in_ignore=true)
	Define whether the given node shall be ignored when checking XML data.
bool	IsNodeToIgnore (std::string const &in_nodeName) const
	Return whether the given node shall be ignored when checking XML data.
void	UseAsDoubleAttribute (std::string const &in_attribute, bool in_useAsDouble=true, int in_precision=4)
	Define whether the given attribute is of type double and in case of type double specify the precision to be used for checking the value.
bool	IsDoubleAttribute (std::string const &in_attribute) const
	Return whether the given attribute is of type double.
int	GetPrecisionOfDoubleAttribute (std::string const &in_attribute) const
	Return the precision used for checking of the given double attribute.
void	UseAsDoubleNode (std::string const &in_nodeName, bool in_useAsDouble=true, int in_precision=4)
	Define whether the given node is of type double and in case of type double specify the precision to be used for checking the value.
bool	IsDoubleNode (std::string const &in_nodeName) const
	Return whether the given node is of type double.
int	GetPrecisionOfDoubleNode (std::string const &in_nodeName) const
	Return the precision used for checking of the given double node.
Check XML contents

void	CheckNode (TiXmlNode in_pNode, char const in_file=0, long in_lineNum=0)
	Writes contents of given XML node to EventReceiver. Each attribute and text is reported with a separate call to EventReceiver.
void	CheckSubNode (TiXmlNode in_pNode, std::string const &in_xPathExpression_1, std::string const &in_xPathExpression_2="", std::string const &in_xPathExpression_3="", std::string const &in_xPathExpression_4="", std::string const &in_xPathExpression_5="", char const in_file=0, long in_lineNum=0)
	Writes contents of given XML node to EventReceiver. Each attribute and text is reported with a separate call to EventReceiver.
void	CheckSubNodeWithMaxChilds (int in_maxChilds, TiXmlNode in_pNode, std::string const &in_xPathExpression_1, std::string const &in_xPathExpression_2="", std::string const &in_xPathExpression_3="", std::string const &in_xPathExpression_4="", std::string const &in_xPathExpression_5="", char const in_file=0, long in_lineNum=0)
	Same as CheckSubNode() but writes contents only for the first in_maxChilds direct child elements of the node identified by the XPath expression(s).
bool	Compare (TiXmlNode in_pNodeA, TiXmlNode in_pNodeB, char const *in_file=0, long in_lineNum=0)
	Compares two XML (sub) trees. The result depends on the settings for attributes/nodes to ignore and for the used precision of double values.
std::string	GetCompareResult (void) const
	Get textual description of the last call to Compare.
Helper functions

static std::string	GetFullPath (TiXmlNode *in_pNode, std::string const &in_rPathToConcat="")
	Get the path for the given node.
static TiXmlNode *	SubNodeFromXPath (TiXmlNode *in_pParentNode, std::string const &in_xPathExpression_1, std::string const &in_xPathExpression_2="", std::string const &in_xPathExpression_3="", std::string const &in_xPathExpression_4="", std::string const &in_xPathExpression_5="")
	Get the node from the given parent node and the given path description.

Detailed Description

Check an XML tree/subtree or compare two trees/subtrees. For more info about usage see Using XmlCheck.

See also:: XmlCheck.h (File documentation); TestXmlCheckBasic (basic tests); TestXmlCheckWithBoost (tests with Boost); TestXmlCheckWithBoostExtensions (tests with Boost and TestToolBox::TestEvents)

Member Function Documentation

IEventReceiver* TestToolBox::XmlCheck::SetEventReceiver ( IEventReceiver * in_pEventReceiver )

Define to which destination test events (e.g. failures) are reported.

Returns:: previous EventReceiver

void TestToolBox::XmlCheck::SetOutputModeForWritingXmlContents ( EventContext in_outputMode )

Set output mode for writing XML contents.

Allowed values: CTX_PROT, CTX_INFO, CTX_TEST_EVENT

void TestToolBox::XmlCheck::CheckNode	(	TiXmlNode *	in_pNode,
		char const *	in_file = `0`,
		long	in_lineNum = `0`
	)

Writes contents of given XML node to EventReceiver. Each attribute and text is reported with a separate call to EventReceiver.

Parameters:

	in_pNode	XML (sub)tree to check
	in_file	optional file name used in case of error
	in_lineNum	optional line number used in case of error

void TestToolBox::XmlCheck::CheckSubNode	(	TiXmlNode *	in_pNode,
		std::string const &	in_xPathExpression_1,
		std::string const &	in_xPathExpression_2 = `""`,
		std::string const &	in_xPathExpression_3 = `""`,
		std::string const &	in_xPathExpression_4 = `""`,
		std::string const &	in_xPathExpression_5 = `""`,
		char const *	in_file = `0`,
		long	in_lineNum = `0`
	)

Writes contents of given XML node to EventReceiver. Each attribute and text is reported with a separate call to EventReceiver.

Parameters:

	in_pNode	XML (sub)tree to check
	in_xPathExpression_1	XPath expression defining a subnode
	in_xPathExpression_2	XPath expression defining a subnode of level 2
	in_xPathExpression_3	XPath expression defining a subnode of level 3
	in_xPathExpression_4	XPath expression defining a subnode of level 4
	in_xPathExpression_5	XPath expression defining a subnode of level 5
	in_file	optional file name used in case of error
	in_lineNum	optional line number used in case of error

void TestToolBox::XmlCheck::CheckSubNodeWithMaxChilds	(	int	in_maxChilds,
		TiXmlNode *	in_pNode,
		std::string const &	in_xPathExpression_1,
		std::string const &	in_xPathExpression_2 = `""`,
		std::string const &	in_xPathExpression_3 = `""`,
		std::string const &	in_xPathExpression_4 = `""`,
		std::string const &	in_xPathExpression_5 = `""`,
		char const *	in_file = `0`,
		long	in_lineNum = `0`
	)

Same as CheckSubNode() but writes contents only for the first in_maxChilds direct child elements of the node identified by the XPath expression(s).

Parameters:

	in_maxChilds	max number of childs to check
	in_pNode	XML (sub)tree to check
	in_xPathExpression_1	XPath expression defining a subnode
	in_xPathExpression_2	XPath expression defining a subnode of level 2
	in_xPathExpression_3	XPath expression defining a subnode of level 3
	in_xPathExpression_4	XPath expression defining a subnode of level 4
	in_xPathExpression_5	XPath expression defining a subnode of level 5
	in_file	optional file name used in case of error
	in_lineNum	optional line number used in case of error

bool TestToolBox::XmlCheck::Compare	(	TiXmlNode *	in_pNodeA,
		TiXmlNode *	in_pNodeB,
		char const *	in_file = `0`,
		long	in_lineNum = `0`
	)

Compares two XML (sub) trees. The result depends on the settings for attributes/nodes to ignore and for the used precision of double values.

Returns:: true if the XML trees are identical

Parameters:

	in_pNodeA	XML (sub)tree A to check
	in_pNodeB	XML (sub)tree B to check
	in_file	optional file name used in case of error
	in_lineNum	optional line number used in case of error

void TestToolBox::XmlCheck::WriteNode	(	TiXmlNode *	in_pNode,
		unsigned int	in_indent,
		int	in_maxChildNodes = `0`,
		char const *	in_file = `0`,
		long	in_lineNum = `0`,
		FormattedContents *	in_pContents = `0`
	)			`[private]`

Write given XML node to EventReceiver or given optional container.

Parameters:

	in_pNode	XML (sub)tree to check
	in_indent	indentation for pretty format
	in_maxChildNodes	maximum number of direct childs to check, 0 : all childs
	in_file	optional file name used in case of error
	in_lineNum	optional line number used in case of error
	in_pContents	optional container to write output to instead of using configured EventReceiver

void TestToolBox::XmlCheck::WriteAttributes	(	TiXmlElement *	in_pElement,
		unsigned int	in_indent,
		char const *	in_file = `0`,
		long	in_lineNum = `0`,
		FormattedContents *	in_pContents = `0`
	)			`[private]`

Writes attributes of given XML node to EventReceiver.

Each attribute and text is reported with a separate call to EventReceiver.

Parameters:

	in_pElement	XML (sub)tree to check
	in_indent	indentation for pretty format
	in_file	optional file name used in case of error
	in_lineNum	optional line number used in case of error
	in_pContents	optional container to write output to

The documentation for this class was generated from the following file:

XmlCheck.h
